| Brand Name: | Fushunt |

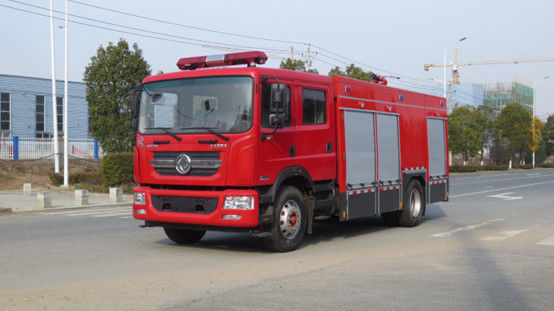

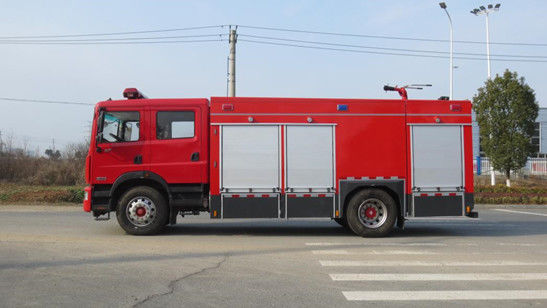

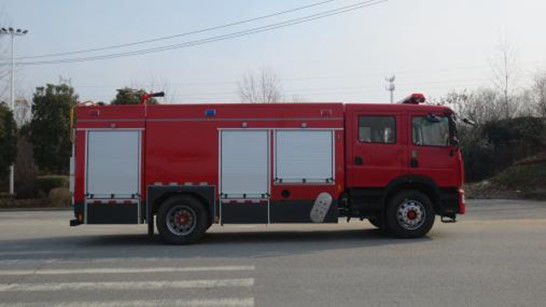

| Model Number: | Dongfeng 8200 liter water tank fire truck 2WD rear drive diesel 6-seater 4×2 manual transmission |
| MOQ: | 1vehicle |
| Price: | $70,000-$90,000Dollar |
| Packaging Details: | Complete vehicle |
| Payment Terms: | T/T |
Paragraph 1: Definition and Purpose
A water tank fire truck is a specialized vehicle designed for firefighting operations. Its primary purpose is to transport and supply a large volume of water to the fire scene for fire suppression. Water tank fire trucks play a crucial role in extinguishing fires in buildings, urban areas, and wildland environments.
Paragraph 2: Vehicle Body and Structure
Water tank fire trucks feature a robust body and specialized structural design. The body is constructed using durable materials to withstand the rigors of firefighting operations. It is typically mounted on a heavy-duty chassis to provide stability and support for the water tank and firefighting equipment. The body may also have compartments for storing additional firefighting tools and equipment.
Paragraph 3: Water Tank and Pumping System
The water tank is a key component of a water tank fire truck. It is designed to store a significant amount of water for fire suppression purposes. The tank is often made of corrosion-resistant materials to maintain water quality and prevent contamination. Water tank fire trucks are equipped with powerful pumps and spraying systems that can draw water from the tank and deliver it to the fire scene at high pressure for effective firefighting.
Paragraph 4: Control and Operation Systems
Water tank fire trucks are equipped with control and operation systems to facilitate firefighting operations. These systems include control panels and levers in the driver's cabin, allowing the operator to start, stop, and regulate the water pump and adjust the water flow pressure. Some trucks may also have LCD displays and controllers for monitoring the status of the water tank and pump, providing operational guidance.
Paragraph 5: Safety and Convenience Features
Water tank fire trucks are equipped with various safety and convenience features to ensure the safety of firefighters and enhance operational efficiency. These features may include emergency lighting, sirens, non-slip steps, and emergency escape devices. Additionally, the driver's cabin is designed with ergonomic considerations, providing comfortable seating and easy access to controls. Some trucks may also have air conditioning systems to maintain a comfortable working environment.
Summary: A water tank fire truck is a specialized vehicle designed for firefighting operations. It features a robust body and specialized structural design, along with a water tank and pumping system. The water tank stores a large volume of water, while the pumping system delivers the water to the fire scene at high pressure. Control and operation systems enable firefighters to operate the truck and regulate the water flow. Safety and convenience features ensure the safety of firefighters and enhance operational efficiency.
Main vehicle parameters:
| Outside dimensions | 8220×2550×3380mm |
| Maximum total mass | 17450kg |
| Liquid carrying capacity | Water tanker truck carries 8200kg of water |
| maximum speed | 90km/h |
| Fire pump rated flow | 40L/s 1.0MPa |
| Rated flow rate of fire monitor | Water tanker: 40L/s 1.0MPa |
| fire cannon range | Water tanker: ≥65m |
| Specific power | 169/17.45=9.68 |
| Approach / departure angle | 19°/11° |
| model | EQ1185DJ9CDF |
| manufacturer | Dongfeng Motor Co., Ltd. |
| Engine rated power | 169kW |
| engine capacity | 6200ml |
| Engine emission standards | GB3847-2005, GB17691-2018 Country VI |
| Drive form | 4×2 |
| Wheelbase | 4700mm |
| Maximum allowed total weight | 18000kg |
| structure | Flat head, four doors, original double row |
| Number of drivers and passengers | 3+3 people |
| equipment |
|
| General layout | 1. Alarm; |
| structure | 2. Power take-off control switch and indicator light; |
| Equipment box | 3. Additional power switch; |
| pump room | The vehicle is composed of two major parts: the firefighter's crew compartment and the body. The body layout adopts a three-piece structure, with the equipment box at the front, the tank in the middle, and the water pump room at the rear. The tank is a T-shaped tank. |
| Ladders and handles | The main frame structure is welded with high-quality square tubes, and the exterior decorative panels are welded with carbon steel plates. The anti-skid pattern plate on the roof is walkable, with flip pedals on both sides and anti-skid design (aluminum alloy square tubes are welded according to user needs). |
| capacity | The equipment box is located at the rear of the passenger compartment. There are aluminum alloy rolling shutter doors on both sides with lights inside. Storage boxes are provided in the equipment box according to needs. There is a tool box and rolling shutter door on the lower side skirt, which can store small tools. |
| Material | The pump room is located at the rear of the vehicle. There are aluminum alloy rolling shutter doors on both sides and behind. There are lights inside. Some commonly used equipment can be placed on both sides of the pump room. |

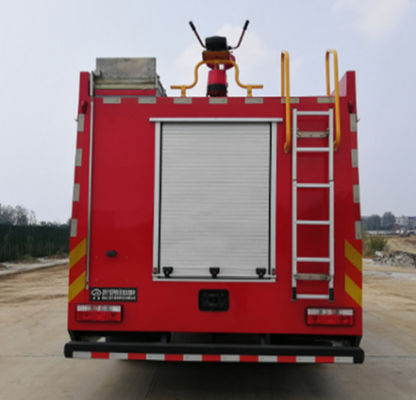

| tank fixed | The rear ladder adopts an aluminum alloy two-section flip ladder, which is no more than 450mm above the ground when in use. The handle of the vehicle is made of a grooved anti-slip round steel pipe with a plastic spray treatment on the surface. |
| Tank settings | 8200kg (SG80) |
| High quality carbon steel (thickness bottom plate 4mm, side plates 3mm, top plate 3mm) | |
| Flexible connection with subframe | |
| Manhole: 1 DN460 manhole cover with quick lock/open automatic pressure relief device | |
| Overflow port: 1 DN65 overflow port is provided | |
| model | CB10/40-RS type normal pressure vehicle fire pump |
| form | Normal pressure centrifugal |
| Limited Data | 40L/s@1.0MPa |
| Outlet rated pressure | 1.0MPa |
| maximum suction depth | 7m |
| water diversion device | Double piston vacuum pump |
| Water diversion time | Maximum suction depth ≤50s |
| Pipe material | High quality seamless carbon steel pipe |
| Suction pipeline | There is one DN125 water suction port on each side of the pump room. |
| Water injection pipeline | There is a DN65 water injection port on the left and right sides of the water tank, and a DN65 water pump is installed in the pump room to inject water into the tank. |
| Outlet pipe | There is one DN80 water outlet with stop valve on the left and right sides of the pump room. |
| Cooling water pipeline | Cooling water pipeline and control valve equipped with cooling power take-off |
| Water cannons | PS8/40W |
| manufacturer | Chengdu West Fire Machinery Co., Ltd. |
| Rotation angle | 360° horizontal rotation |
| Maximum elevation/depression angle | Depression angle ≤ -15°, elevation angle ≥ +45° |
| flow | 40L/S |
| range | Water≥65m |
| Additional electrical | Set up independent circuit |
| Auxiliary lighting | The fireman's room, water pump room and equipment box are equipped with lights respectively, and the control panel is equipped with lighting, indicator lights, etc. |
| strobe light | Red and blue strobe lights are installed on both sides of the car body |
| warning device | Long row of red warning lights, installed on the top of the cab |
| Siren, with control box under the driver's front | |
| Fire scene lighting | Install a 35W fire searchlight on the rear of the bodysuit |
| Topcoat | High quality domestic paint |
| color | The main color of the outer surface of the car body is RO3 fire red |
|
|
