| Brand Name: | Futian Medical Ambulance 4×2 with 8-seat gasoline rear drive (I) |
| Model Number: | Futian Medical Ambulance 4×2 with 8-seat gasoline rear drive (I) |
| MOQ: | 1vehicle |
| Price: | 30000-50000dollar |
| Packaging Details: | entire car |
| Payment Terms: | T/T |

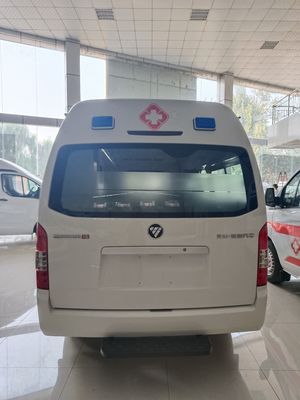

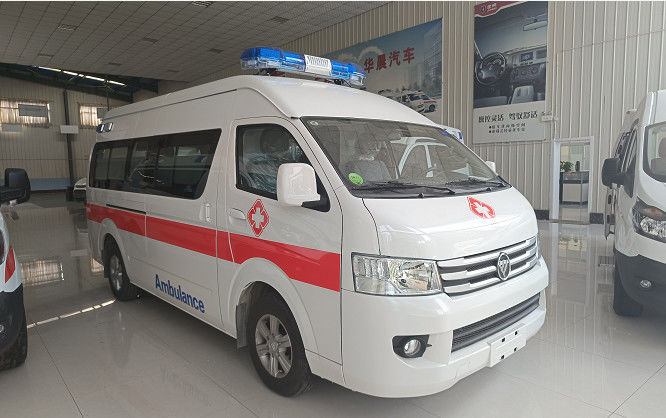

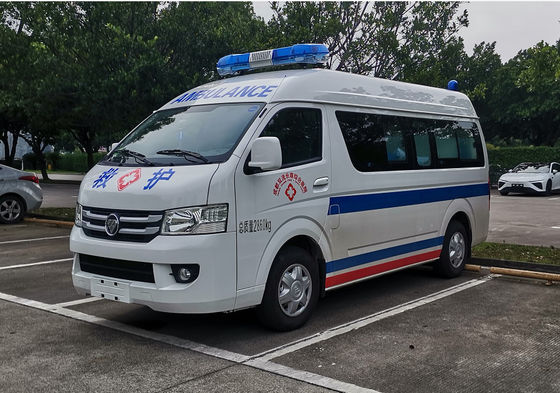

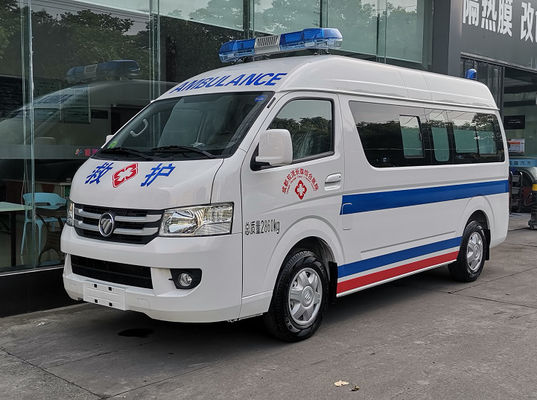

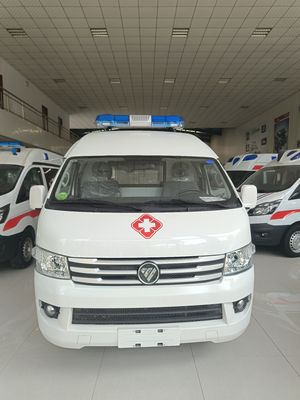

Futian Medical Ambulance 4×2 with 8-seat gasoline rear drive (I)
Serial number vehicle technical parameters
1 Body size mm mm: 5530×1920×2435 (length× width× height)
2 wheelbase mm: 3110
3. The total weight of the fully loaded vehicle is kg: 3400.
4 Vehicle curb weight kg: 2240
Suspension system: front suspension with double wishbone torsion bar spring independent suspension and rear suspension with leaf spring dependent suspension.
6 Minimum ground clearance mm: 170
7 Minimum turning diameter M: 12.5
8 fuel type: gasoline
9 Tank volume (L): 65
10 engine model 4K22D4M
11 displacement ml: 2378
12 rated power kw (HP)/rpm: 118
13 Track (front/rear) mm mm: 1655/1650
14 Axle load (front/rear) kg kg: 1610/1790
15 Front suspension/rear suspension mm mm: 1190/1080, 1190/1230
16 Emission standard: GB18352.6-2016 National VI
17 drive mode: center-mounted rear drive
Transmission: 5-speed manual transmission
19 top speed km/h: 150
20 tyre size model 195R15C
21 Brake system front disc rear drum
22 rated passenger (including driver) 6-8
Main configuration of vehicles
23 All-metal closed load-bearing body
24 ABS+EBD
25 central locking
26 front row electric doors and windows
Original system of 27 cab medical cabin
28 Same color bumper
29 spare tire
30 spare tools
31 High position brake light
32 tripod, reflective vest
1 white body+red powerful reflective tape
2. Glass film is pasted on the window of medical cabin 2/3.
Alarm and lighting system
3 100 w alarm
4 LED blue flashing warning light at the front of the roof
5. The blue flashing warning light of the LED of the roof tailgate.
6 LED blue and white warning lights on the left and right sides of the roof
7 LED square lighting in medical cabin
8 LED spotlights inside the medical cabin
9 Back-illuminated floor lamp
Central power distribution system
10 is composed of battery, intelligent charging control device, sine wave inverter with charging function, electric cabinet, wiring harness and control panel.
Intelligent charging control device: 1. Ensure the normal charging of the battery; 2. Automatic disconnection to avoid generator overload and prolong generator life; 2000W pure sine wave inverter, a new type of ambulance vehicle power supply device, is installed and used. It can be used for precision medical equipment and can form uninterrupted power supply.
12 triple power management device for ambulance: the average static current test is less than 7.1ma, which effectively saves battery energy and has multiple protection functions, including AC and DC input high and low voltage protection, overload protection and temperature protection.
13 AC/DC (220V, 12V) power socket set

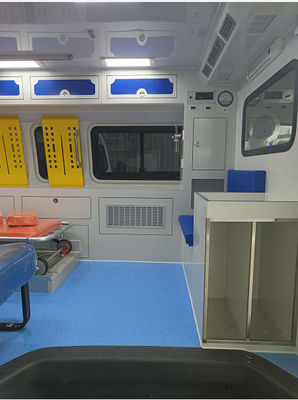

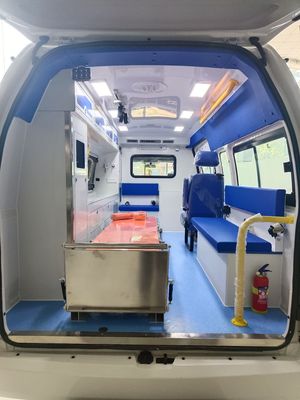

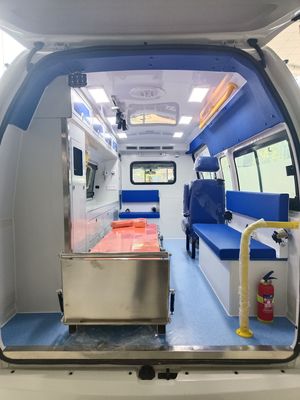

Medical cabin configuration
14 integrated lighting interior
15 Installation of partition wall between cab and medical cabin: with sliding window.
Independent heating and cooling system (original air conditioner) for medical cabin, with independent control of heating and cooling, and reasonable control of temperature in medical cabin as required.
17 Two-way ventilation system in medical cabin
18 ultraviolet sterilization lamp, which has the function of timing delay opening.
Anti-collision protection for the head of 19 side doors and anti-collision treatment for strengthening the inner wall of medical cabin.
20 yellow nylon antibacterial handrails are installed at the top of the medical cabin.
21 slideway infusion hanger at the top of medical cabin
|
|
